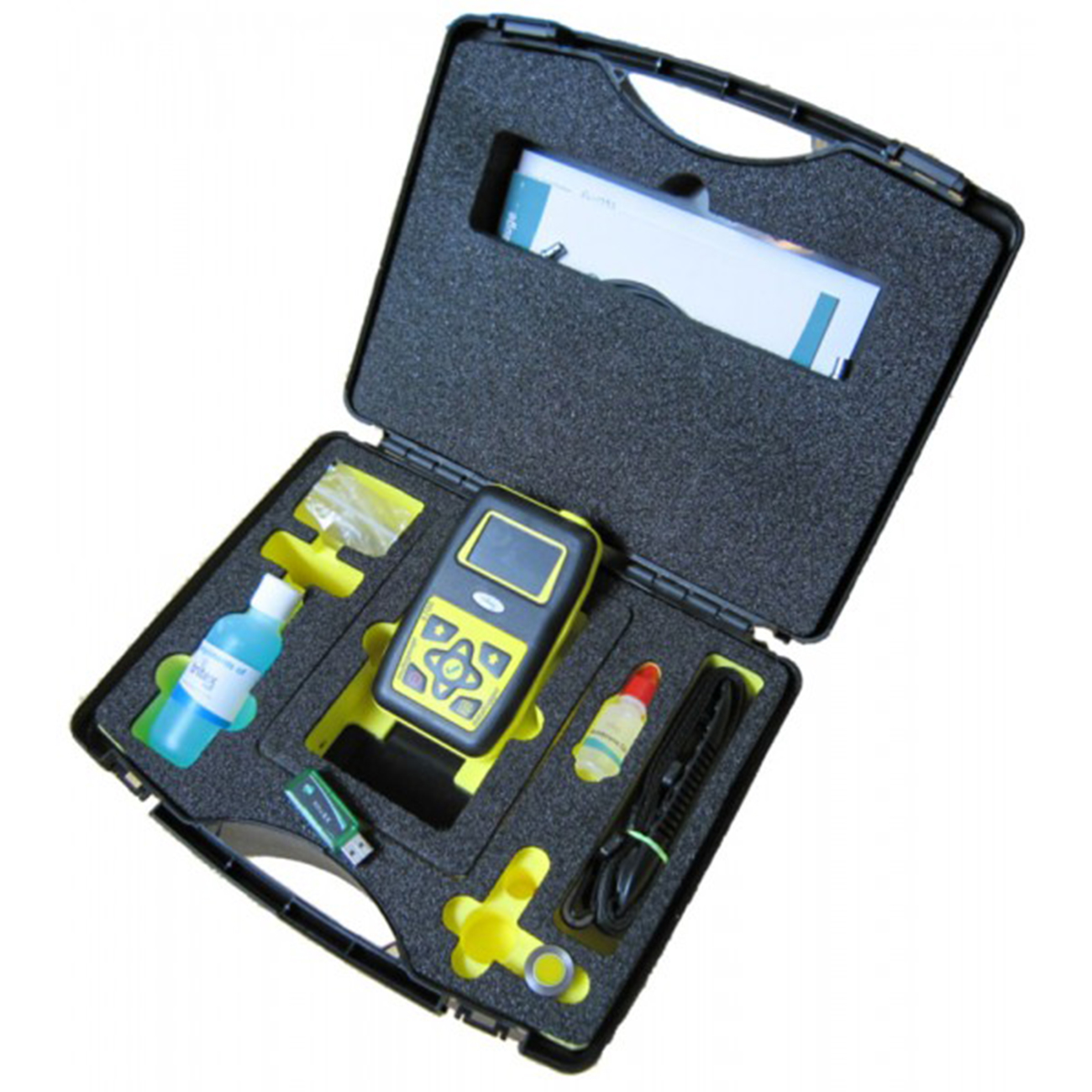

MULTIGAUGE 5700 DATALOGGER

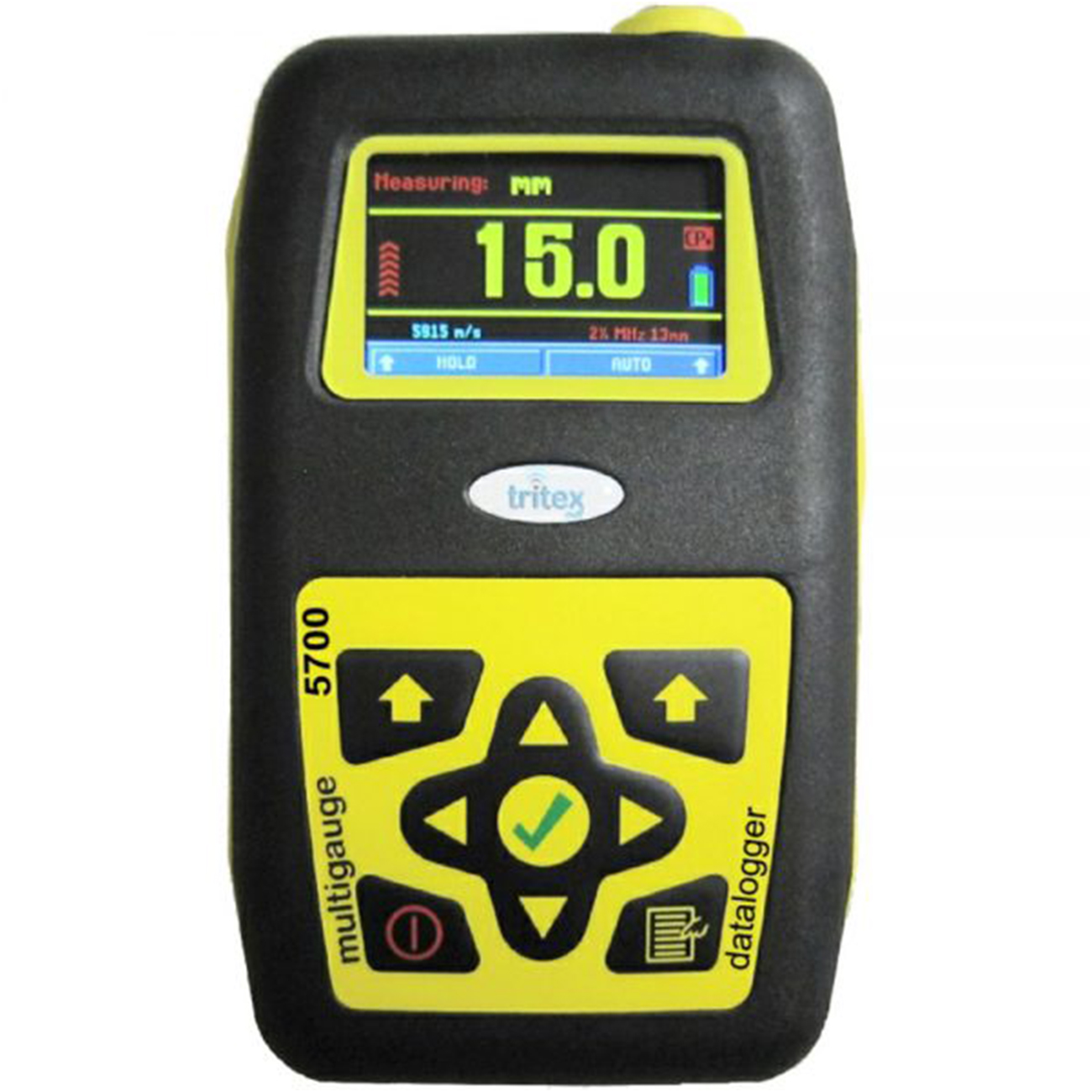

The Multigauge 5700 is a simple, robust ultrasonic thickness gauge designed for most common thickness gauging applications with the added benefit of being able to store measurements within the gauge. The easy to use keypad allows operator interface whilst the bright LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals. The gauge can store measurements in either a grid or string format which can then later be used in other proprietary programs.
Key features & benefits:
- Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
- Automatic Measurement Verification System (AMVS).
- Large colour LCD display giving user information.
- No zeroing required.
- Wireless data transmission.
- Single crystal soft faced probe protected by a membrane.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- 3 year warranty.
- Free calibration for the life of the gauge.
About Multiple Echo
All Ultrasonic Thickness Gauges should be calibrated to the velocity of sound of the material being measured. Coatings have a different velocity of sound than metal and it is important they are not included in the measurement. Multiple Echo ensures all coatings, up to 6mm thick, are completely eliminated from the measurement.
How it works:
A transmitted ultrasound pulse travels though both the coating and the metal and reflects from the back wall. The returned echo then reverberates within the metal, with only a small portion of the echo travelling back through the coating each time. The timing between the small echoes gives us the timing of the echoes within the metal, which relate to the metal thickness. The returned echoes need not be consecutive as the gauge will interpret them automatically and calculate the thickness. A minimum of three echoes are checked each time. This is referred to as the Automatic Measurement Verification System (AMVS).
Specification:
- Sound Velocity Range From 1000 m/s to 8000 m/s (0.0394 in/μs to 0.3150 in/μs)
- Single Crystal Soft Faced Probe Options 2.25 MHz, 3.5 MHz, 5 MHz
- Probe Measurement Range 3 – 250 mm(0.120” to 10”), 2 – 150 mm(0.080” to 6”), 1 – 50 mm(0.040” to 2”)
- Probe Sizes 13 mm (0.5”), 19 mm (0.75”), 13 mm (0.5”), 6 mm (0.25”), 13 mm (0.5”)
- Resolution 0.1 mm (0.005”) or 0.05 mm (0.002”)
- Accuracy ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”)
- Display Colour LCD
- Storage capacity 32 Mb
- Data Transmission Wireless RF
- Coatings Range Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)*
- Batteries 3 x disposable AA alkaline batteries or rechargeable NiMH / NiCD
- Battery Life Up to 50 hours continuous use using alkaline batteries
- Gauge Dimensions 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”)
- Gauge Weight 325 g (11.5 ounces) including batteries
- Environmental Case rated to IP65. RoHS and WEEE compliant
- Operating Temperature -10°C to +50°C (14°F to 122°F)
- Storage Temperature -10°C to +60°C (14°F to 140°F)
